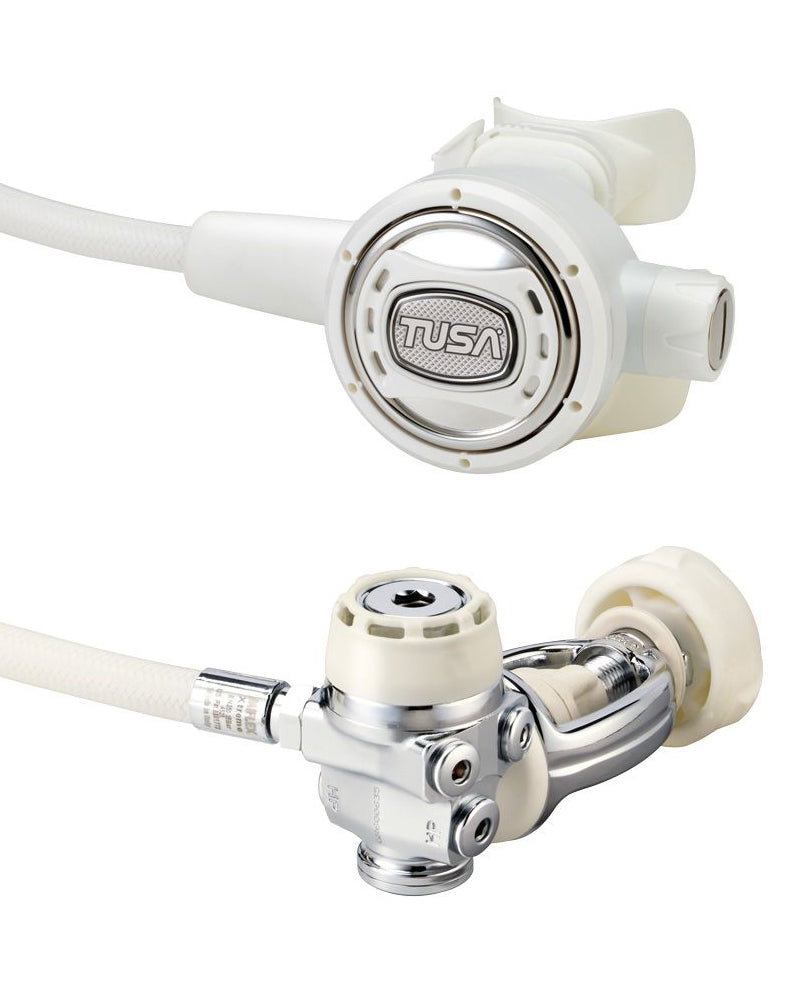

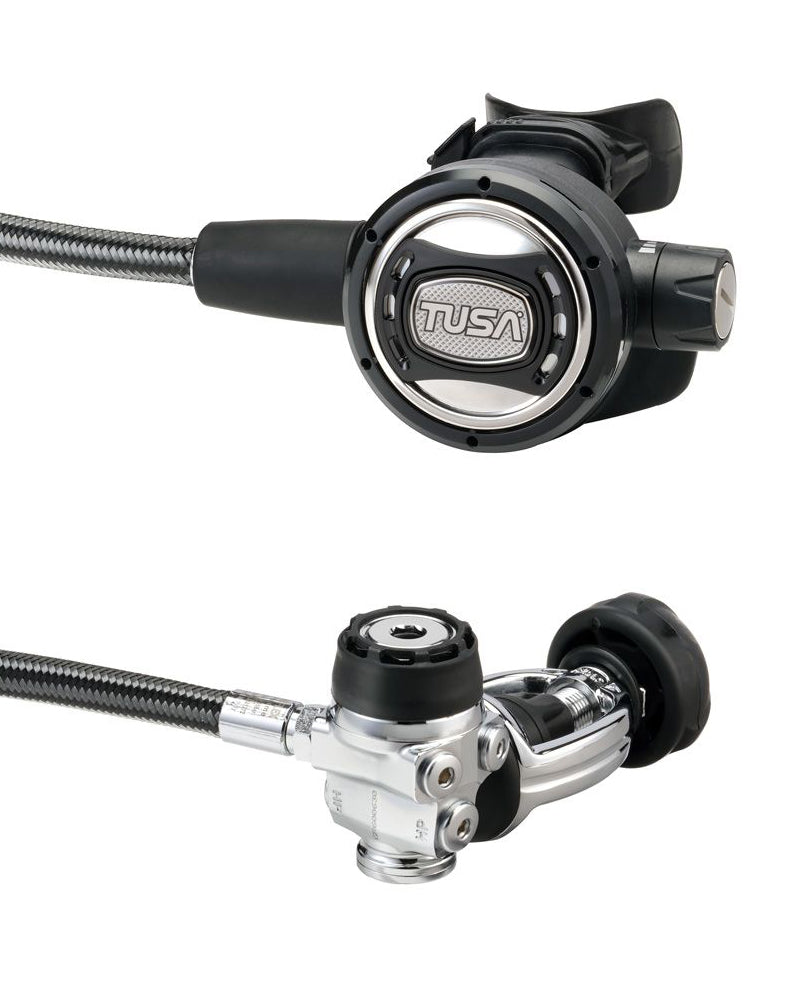

RS-609P Regulator

This TUSA RS609P REGULATOR is a new high-performance regulator is ultra-lightweight and flexible, using an efficient demand system that allows for easy breathing.

1^st STAGE - DRY AMBIENT PRESSURE CHAMBER

The dry ambient pressure chamber on the R-700 prevents water contact with the diaphragm and spring maximizing performance, at any dept, in cold water conditions below 50°F / 10°C.

2^nd STAGE – PNEUMATICALLY BALANCED SYSTEM

The S-90 second stage is a pneumatically balance design. A small chamber positioned at the end of the poppet assembly traps air and forces the poppet back against the intermediate pressure orifice. This provides decreased inhalation resistance and increases smooth breathing in all conditions.

FEATURES:

·         2nd stage face is made of stainless steel with a mirror-polished finish.

·         1st stage R600 boasts extremely high-performance while being compact and lightweight. With ultra-high performance balanced diaphragm.

·         New White regulator incorporates a white flexible Miflex hose. (for less strain on the jaw and mouth)

·         Deflector mechanism to reduce intake resistance.

·         Improved operability by enlarging the purge button.

TECHNOLOGY:

	DEMAND SYSTEM A demand valve that opens and closes the air passage from the first stage to the second stage. By applying a unique special surface treatment to the contact surface of the demand lever that opens and closes the demand seat, the frictional resistance during operate is thoroughly reduced, realizing smooth and natural breathing.
	ORTHO-CONSCIOUS MOUTH PIECE The Ortho-Conscious Mouth Piece feature prevents jaw fatigue. The ridges and flexible material allow the diver to have more control of the mouth piece and reduces tension in the jaw.
	ADVANCED FLOW SYSTEM The Advanced Flow System allows ease of air flow and makes air delivery smoother due to the curved housing structure.
	CLICK SPRING ADJUSTMENT Adjustment knob to control breathing resistance.
